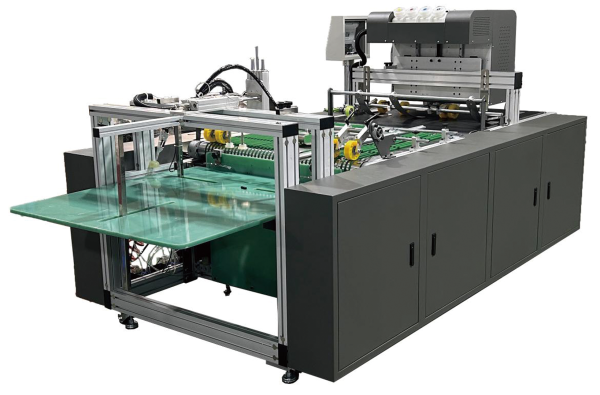

SINGLE PASS SERIES XY-900

The multi-row sprinkler combination can choose diversified technical support according to the actual productioncapacity so that the efficiency can be increased several times.
Sheet printing, no plate making, washing machine, whether urgent order, loose order, small batch, not limited byquantity, equipment,can be immediately desirable.
CMYK four-color full-color output, accuracy up to 1200dpi, gray level printing technology, so that the picture more
colorful, higher degree of restoration.
Man-machine interaction, simple operation, automatic receiving system, maximum single width 2500mm, unlimitedlength, to meet more material operations.
Automatic cleaning + insulation system, more convenient maintenance, effectively reduce the number of nozzlemaintenance, improve the return of low cost investment and high efficiency

描述

CERTIFICATION

CAPACITY ALLOCATION	Print head	Industrial grade print head
	Scheme configration	1/2/3/ PCS（CYMK）
	Production mode	10-25m/min； Production capacity is determined by configration and pattern
	Ink type	AQ Ink
	Application field	Document Bags，Paper Cups，Paper Bags，etc.
	Medium requirement	thickness 0-55mm, width 900mm

PARAMETER CONFIGURATION	System software	USB 3.0 Third-party RIP
	Format requirement	PDF、JPEG、TIFF、CDR、AI、EPS，etc.
	Production accuracy	180/240/300/360/480/600 DPI
	Mode of production	Production method: Front-end paper feeding, media positioning, conveyor belt vacuum adsorption, and assembly line-style conveying operation.
	Motor System	Servo drive
	Drying system	Infrared/Hot air drying system(costomizable)
	Electrical power	≈3KW，AC 220V，50Hz
	ite environment	Temperature 15-30℃，Humidity 40-70%

The above technical parameters and content are for reference only, and the accurate information shall prevail according to the actual situation.
